1 Bộ Động Cơ Bước Cho Máy In 3d Voron V2.4 42-20 20mm 2m / 6.56ft

Giới thiệu 1 Bộ Động Cơ Bước Cho Máy In 3d Voron V2.4 42-20 20mm 2m / 6.56ft

#3D #Printer #Motor #Compatible #With #Voron #V2.4 #Extruder #Motor #42-20 #20mm #Stepper #Motor #with #2M/6.56ft

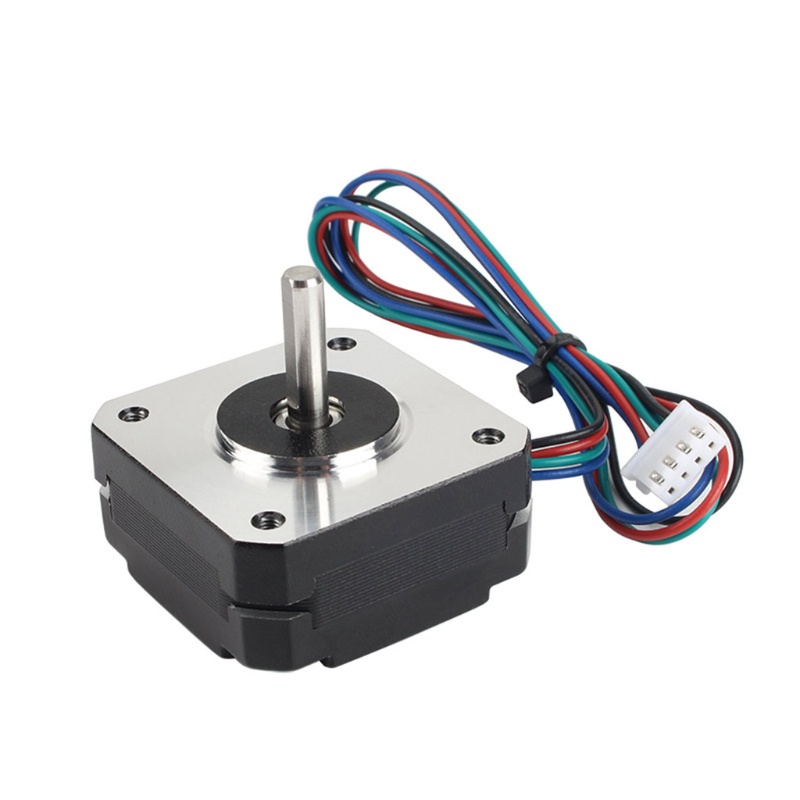

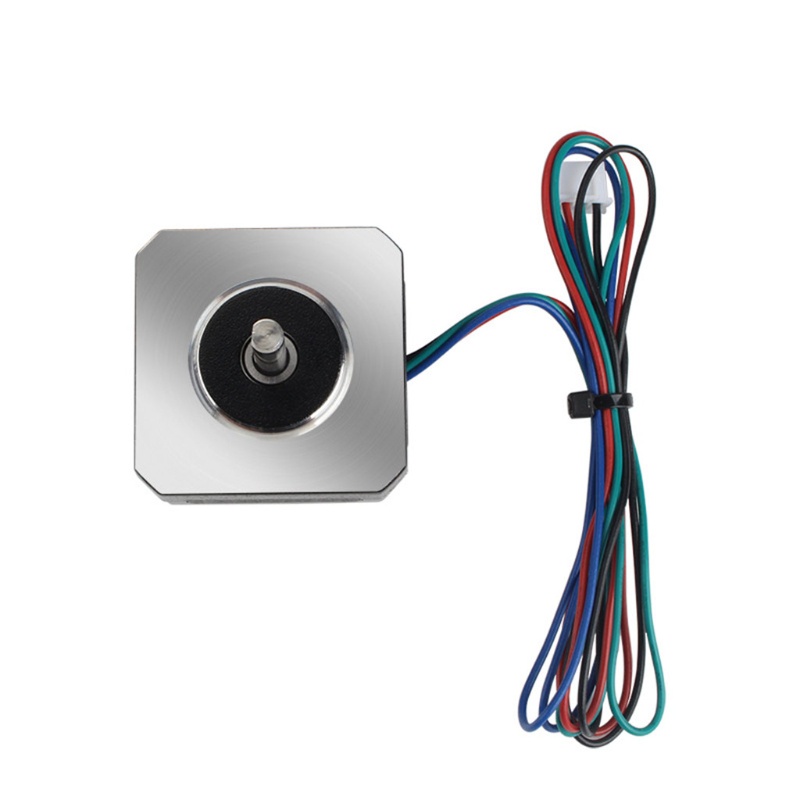

3D Printer Motor Compatible With Voron V2.4 Extruder Motor 42-20 20mm Stepper Motor with 2M/6.56ft Extension Line 1Set
Features: 100% brand new and high quality
Lower noise, strong torque, stable property and high accuracy.
3D Printer creality motors 42-40 stepper motor 2 Phase 1A 1.8°士5% degree step angle stepping motor for 3D printer extruder.
Compatiable with Prusa i3 MK3S/MK3S+, BLV MGN Cube and Voron 2.4/Switchwire 3D printers.
Had better install it to BMG style extruder, which has >1:3 ratio.

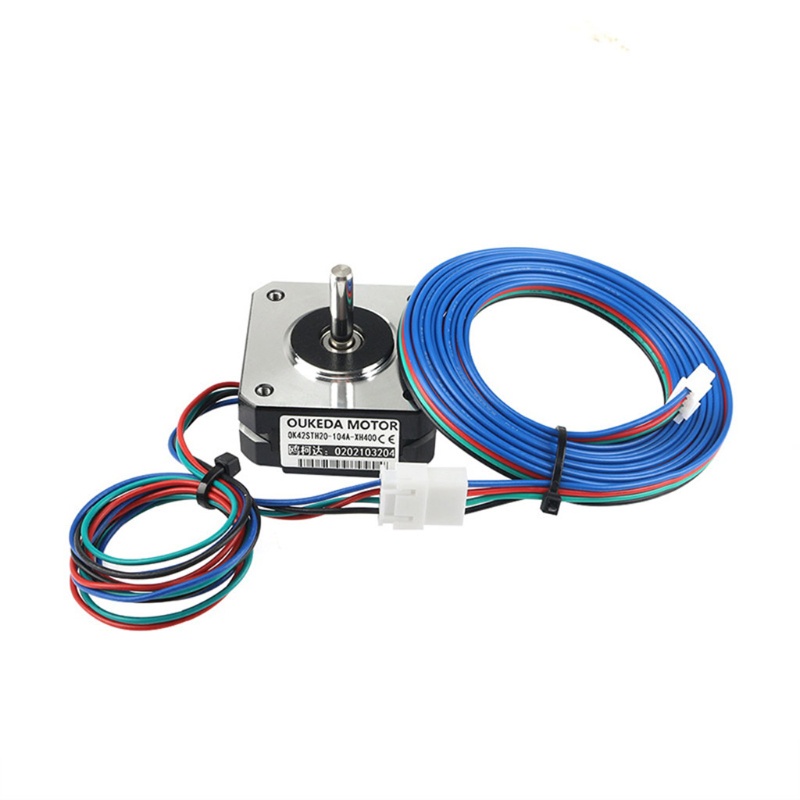

Motor Size is approx 42 X 42mm (1.7 X1.7In), come with 2M/6.56ft extension cable.

Specification: Step angle：1.8°士5% .
Number of phase：2
Phase voltage：3.5 VDC
Phase current：1.0Amp.
Phase inductance：4.5土20%
Static moment：0.13 N.n
Insulation class：Class B
Insulation resistance 100MO min. (500V DC)
Ambient temperature：-20°→+50°
Ambient hum：15% to 95%
Motor weight：Appror 0. 1Kg
Use vol tage ：VDC: 12-36V
Recomnended drive：0K2D4020A
Cable:40cm/1.31ft
Extension Cable:200cm/6.56ft
Compatiable with: Prusa i3 MK3S/MK3S+, BLV MGN Cube and Voron 2.4/Switchwire 3d printer.

Package Includes: 1Set For Voron 2.4 Extruder Motor

note: Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
